DJI Agras T70 P

Efficiency Expert

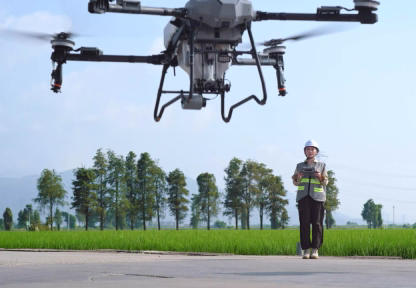

The DJI Agras T70P agricultural drone is newly upgraded to support spraying, spreading, and lifting in various operational scenarios, with a maximum payload capacity of 70 kg. It delivers enhanced efficiency while featuring Safety System 3.0 and advanced algorithms for comprehensive, round-the-clock protection.

• 70 L Spraying Tank, 40L/mn Low Rate
• 100 L Spreading Tank, 400 kg/min Flow Rate
• Obstacle Avoidance AR Enhanced Display
• 20 m/s Max Operation Speed
• 65 kg Lifting
• Ultra-Fast Charging

Spraying System: Efficient Operation, Outstanding Performance

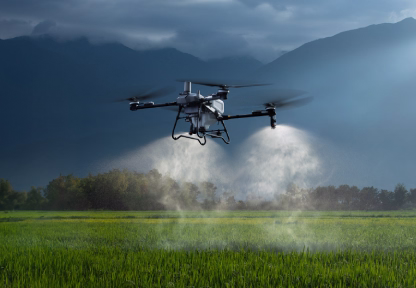

The T70P comes equipped with a 70 L tank and dual atomization centrifugal sprinklers, offering high flow rates for faster flight speeds and greater operational efficiency in field applications. Orchard users can choose an optional mist sprinkler set, which upgrades both flow rate and atomization effects, ensuring thorough penetration even through dense canopies and tall plants.

FIELD OPERATIONS:

• 20% Increase in Operation Efficiency
• 30 L/min High Low Rate
• 20 m/s Maximum Flight Speed
• 4-11m Effective Spray Width

ORCHARD OPERATIONS:

• 40 L/min
• 65% increase in Penetration and Leaf Underside Coverage

Spraying System: Outstanding Efficiency and Performance

The T70P features a new spreading system with a larger payload and capacity, delivering a 270% increase in spreading flow rate for significantly improved efficiency. Equipped with a new screw feeder, it supports a wide range of granulars and excels in diverse scenarios, including fields, orchards, and aquaculture.

• 100 L(70 kg) Large Capacity Spreading Tank
• 400 kg/min High Flow Rate
• 10 m Effective Spreading Width
• 0.5-10 mm Granule Size Range

Safety System: Obstacle Avoidance, AR Enhanced Display

The T70P is equipped with intelligent obstacle avoidance and AR-enhanced display. With Safety System 3.0, its radar and vision systems work together with upgraded algorithms to deliver comprehensive obstacle awareness, enabling smooth navigation and effortless maneuvering through fields.

• Millimeter-Wave Radar: The front radar performs 5,000 vertical airspace scans per second combined with 360° horizontal mechanical rotation scanning, along with a rear radar, offering a more comprehensive detection range.
• Tri-Vision System: Two black-and-white fisheye cameras and an FPV camera work in tandem with radar through visual fusion algorithms to enhance Terrain Following and obstacle avoidance capabilities.
• Night Navigation Light: In addition to the existing low beam lights, new front-facing high beams and downward supplemental lighting have been added. The downward lighting automatically activates during landing, ensuring safer nighttime operations.
• Night Vision Color FPV Camera: Utilizing virtual gimbal technology, the FPV camera's pitch angle can be freely adjusted. It supports night vision mode, and when combined with night navigation lights, obstacles remain clearly visible even in the dark.

See more: https://ag.dji.com/t70p

‍
